Comix-35 Bare motherboard

Comix-35 Bare motherboard

Tap for gallery

£30.00


Product Information
Specification

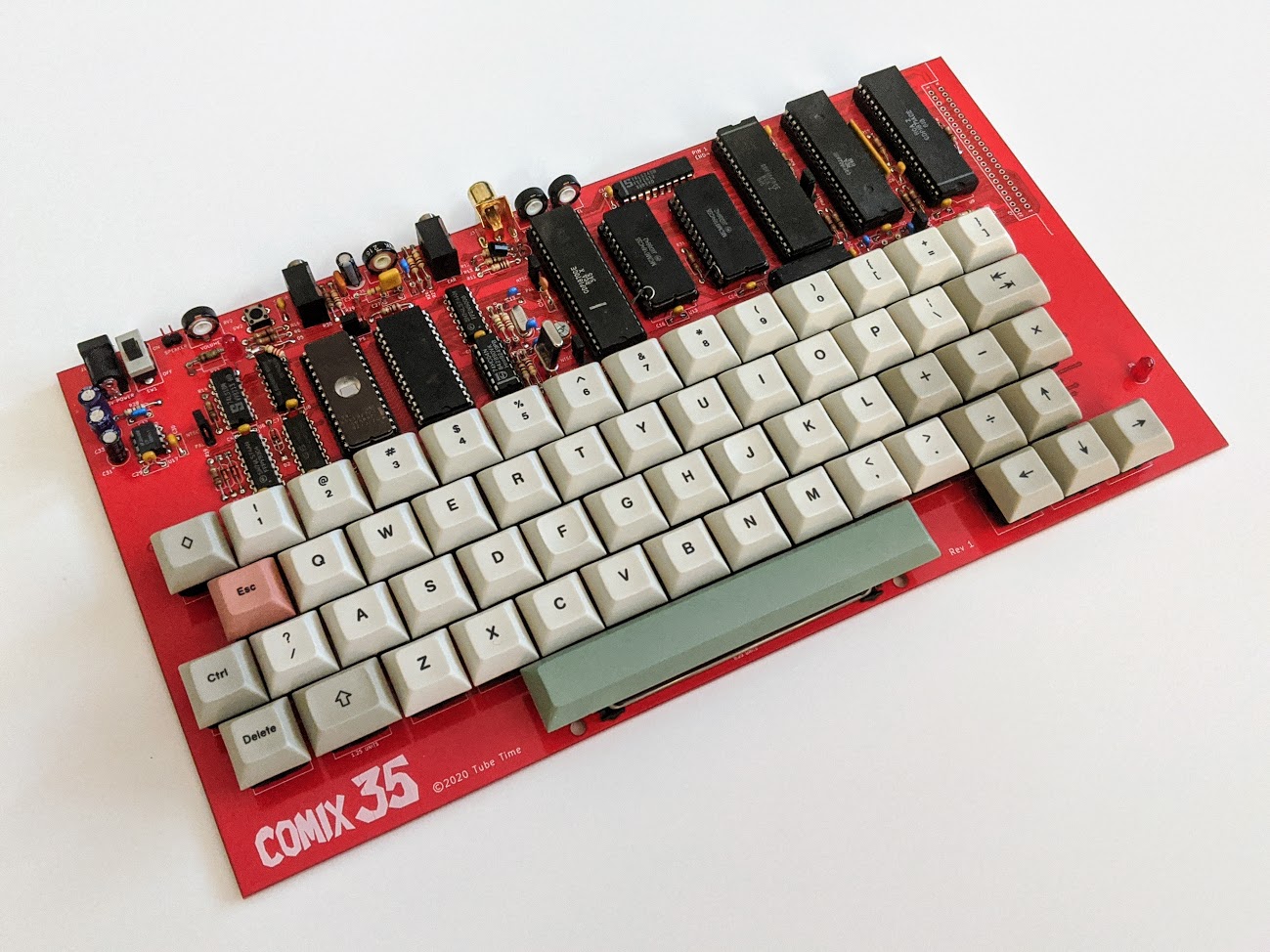

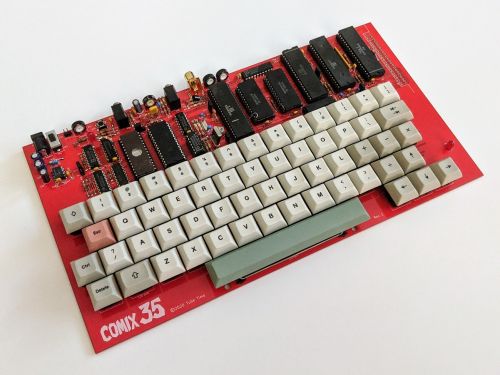

The COMIX-35is an open-source clone of the 1980s COMX-35 8-bit home computer.

It uses the RCA 1802 microprocessor which is strange and slow but holds the distinction of being the first CMOS microprocessor.

The "35" is because the original computer has 32K of main memory + 3K of video RAM.



Bill of Materials

I am in the process of sorting out a kit of parts for selling on the website



Item,Qty,Reference(s),Value,Digikey,Mouser
1,20,"C1, C2, C3, C4, C5, C7, C8, C9, C10, C11, C14, C16, C17, C20, C21, C22, C25, C26, C29, C30",0.1uF,,581-SA105E104M
2,1,C6,100uF,,667-ECA-1CM101I
3,1,C12,CHROMA,2447-GKG30015-ND,
4,6,"C13, C15, C18, C19, C23, C24",22pF,,810-FG28C0G2A220JNT0
5,1,C27,1uF,,810-FG24X7R1H334KNT6
6,1,C28,1000pF,,810-FG28X7R1H102KNT6
7,2,"C31, C35",10uF,,667-ECA-1CM100I
8,1,C32,0.047uF,,810-FA28X7R1H47300
9,1,C33,220uF,,647-UVY1E221MED1TD
10,1,C34,0.33uF,,810-FG28X7R1H334KRT0
11,1,C36,120pF,,810-FG28C0G1H121JNT6
12,4,"D1, D2, D3, D5",1N4148,,512-1N4148
13,1,D4,POWER,,859-LTL-4213
14,1,D6,DATA,,859-LTL-4213
15,1,J1,Barrel_Jack_Switch,,490-PJ-002B
16,1,J2,EXPANSION,S3316-ND,
17,1,J3,VIDEO,,161-0360-E
18,1,J4,EAR,,490-SJ1-3533NG
19,1,J5,Conn_01x02,,
20,1,J6,MIC,,490-SJ1-3533NG
21,3,"JP1, JP2, JP3",NTSC/PAL,,
22,1,JP4,CLKSEL,,
23,1,JP5,BANK,,
24,1,JP6,PAGE,,
25,1,M1,Stiffener,,540-0G990743
26,1,Q1,2N3904,,512-2N3904BU
27,15,"R1, R3, R6, R14, R15, R16, R18, R19, R20, R21, R22, R26, R27, R31, R32",10K,,603-CFR-25JB-52-10K
28,1,R2,100K,,603-CFR-25JB-52-100K
29,3,"R4, R9, R23",1M,,603-CFR-25JR-521M
30,4,"R5, R10, R25, R29",1K,,603-CFR-25JR-521K
31,3,"R7, R12, R33",220,,603-CFR-25JR-52220R
32,2,"R11, R28",10,,603-CFR-25JR-5210R
33,1,R13,75,,603-CFR-25JR-5275R
34,1,R17,10M,,603-CFR-25JT-52-10M
35,1,R24,DNI,,DNI
36,1,R30,100,,603-CFR-25JR-52100R
37,1,RN1,10K x 8,,652-4609X-1LF-10K
38,1,RV1,47K,,531-PT10LH01473A22S
39,3,"RV2, RV3, RV4",10K,,531-PT10H-10K-S
40,1,SW1,POWER,,633-CS12ANW03
41,1,SW2,RESET,,612-TL1105B
42,58,SW3-SW60,,,540-MX1A-11NW
43,1,U1,CDP1802ACE,,
44,1,U2,74HC574,,595-SN74HC574N
45,2,"U3, U5",74HC74,,595-SN74HC74N
46,1,U4,74HCU04,,595-SN74HCU04N
47,1,U6,74HC10,,595-SN74HC10N
48,1,U7,74HC86,,595-SN74HC86N
49,1,U8,74HC14,,595-SN74HC14N
50,1,U9,CDP1871,,
51,1,U10,CDP1869,,
52,1,U11,74HC245,,595-SN74HC245N
53,3,"U12, U13, U16",AS6C62256,,913-AS6C62256-55PCN
54,1,U14,CDP1870,,
55,1,U15,28C256,,556-AT28C25615PU
56,1,U17,LM386,,926-LM386N-4/NOPB
57,1,Y1,14.318MHz,,815-ABL-14.31818B2
58,1,Y2,11.2896MHz,,815-ABL-11.2896-B4Y
59,1,Y3,DNI,,DNI
Product CodeCOMNDHM521
Stock Level17
ConditionNew
